Multi-Station Roller Bearing Test Rig

Download Data Sheet

Weibull Distribution at the Press of a Button

The RBT-FE9 enables efficient and precise test management for the service life testing of rolling bearings. Modern technology provides reliable online data on the bearing and the simple handling and high probe modularity allow the testing of different bearing types and lubrication types.

1

2

3

4

    1: Bearing supports with heating sleeves for FE-9
    2: Test bearing
    3: CAD section FE-9 head, optionally without torque measuring shaft
    4: CAD section FE-8 head

    The friction torques of the 5 co-rotating test heads with a good grease on the left and a bad grease on the right are shown.

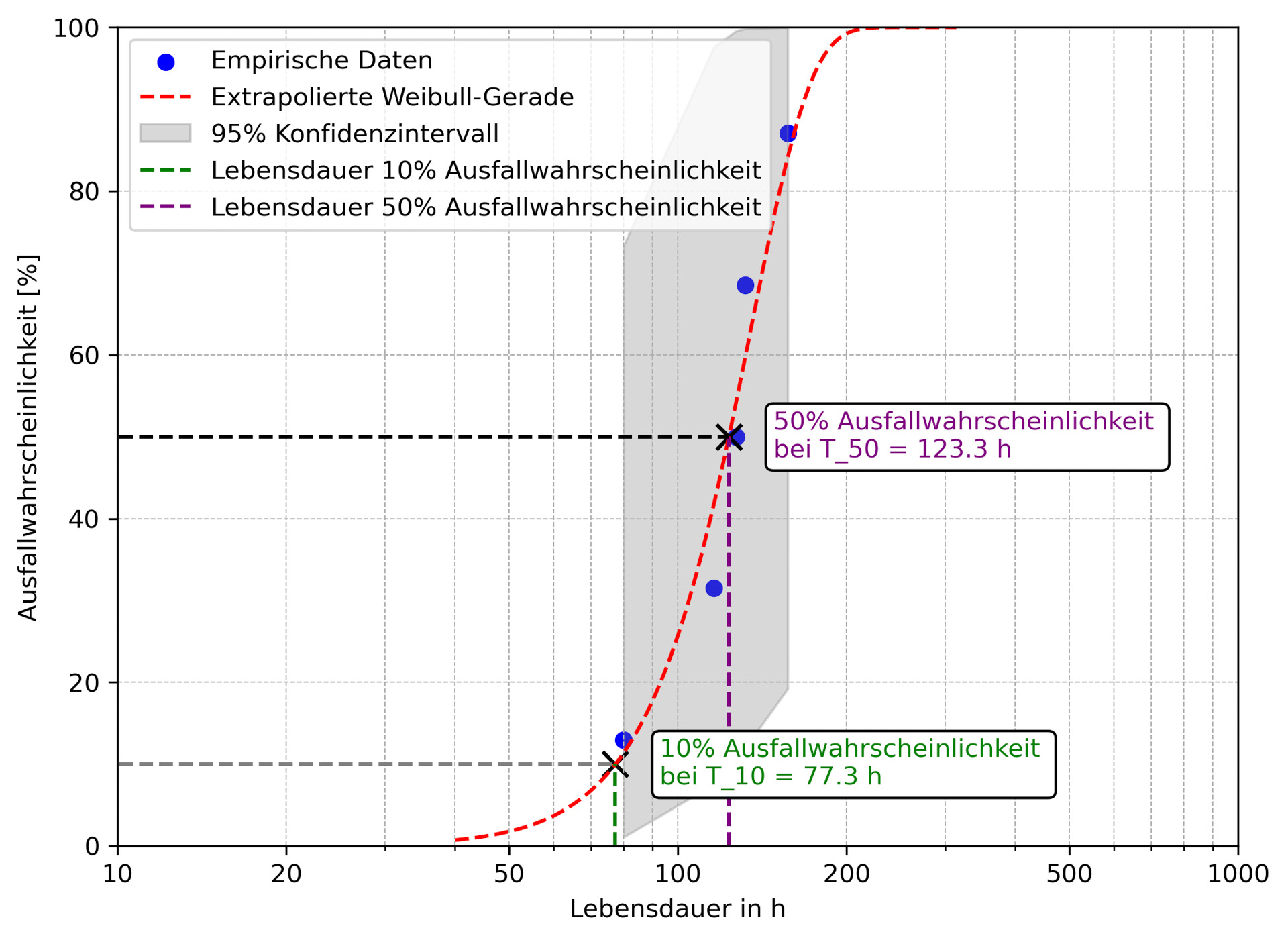

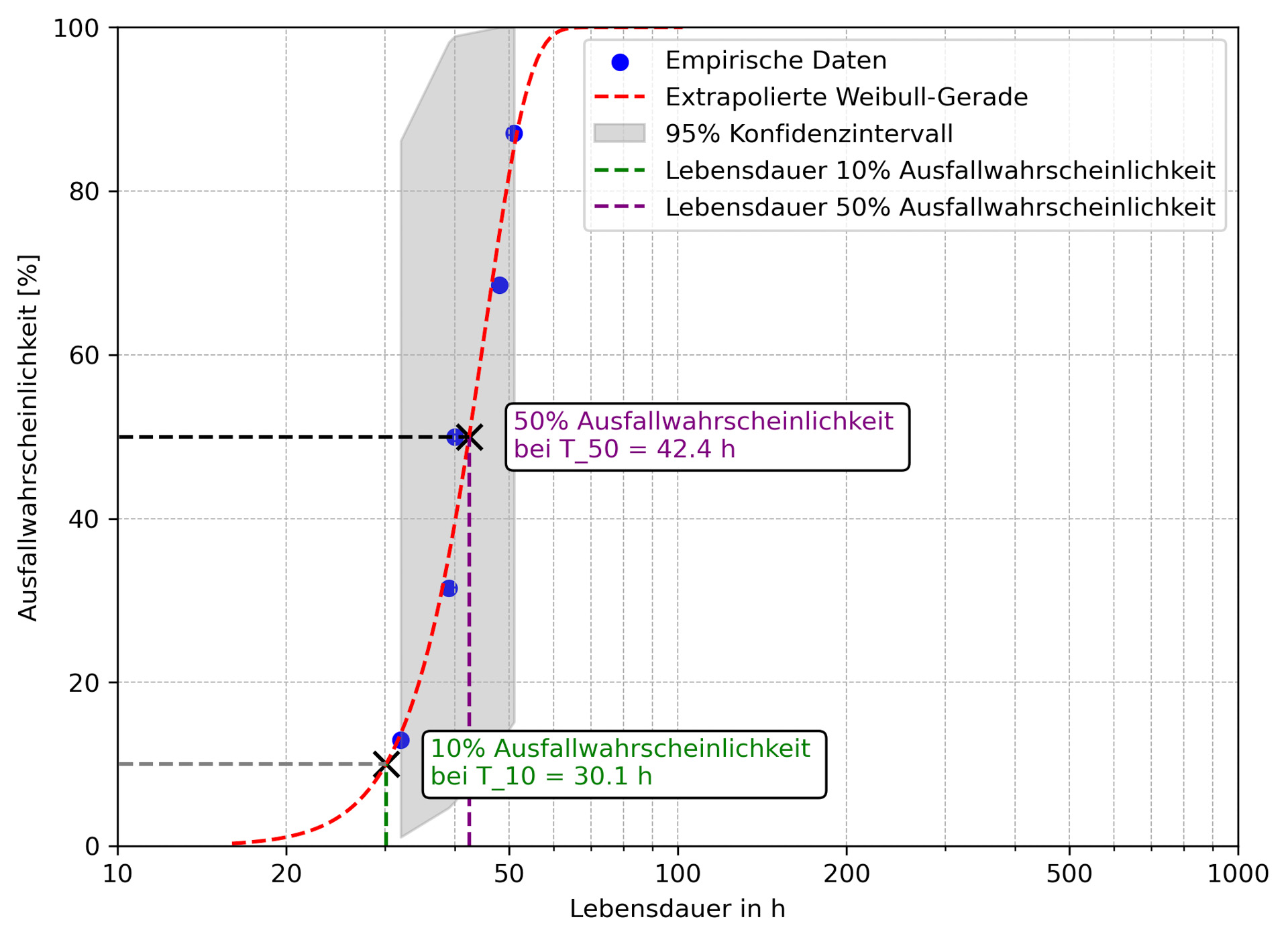

    On the basis of the test results, the Weibull distribution can then be created to assess the service life of the rolling bearings.
